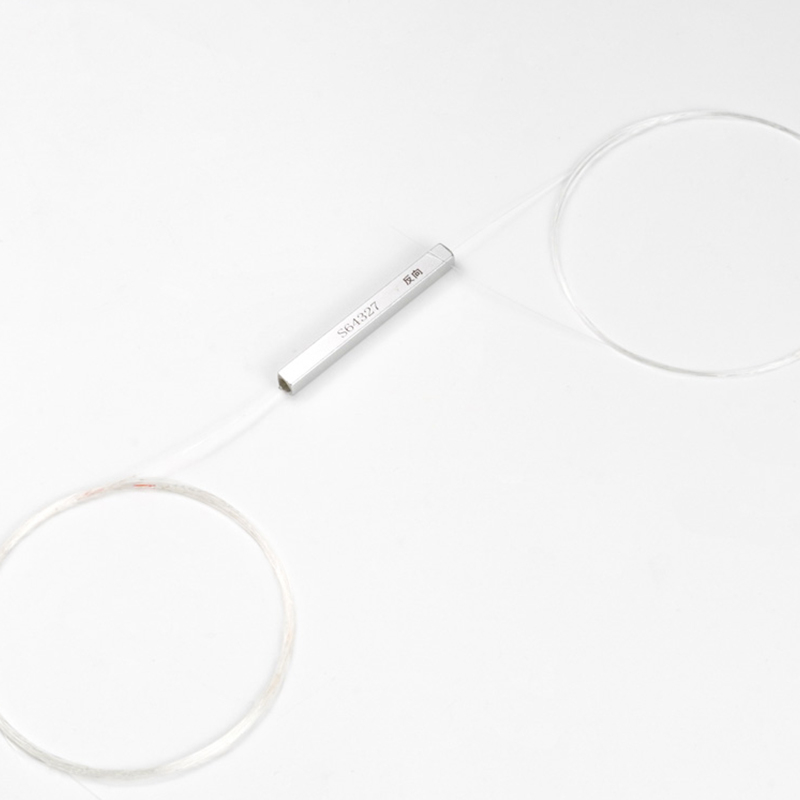

Mini Size Online Polarizer
Features:
LowInsertion
High Extinction Ratio
High Stability
High Reliability
Applications:
Communication
Test Instrument
Fiber Sensors
Research
LowInsertion
High Extinction Ratio
High Stability
High Reliability
Applications:
Communication
Test Instrument
Fiber Sensors
Research
| Quantity: | |
|---|---|
| PDF Export | |
Product Description
| Parameter | Spec | Unit | |||
| Center Wavelength | 1550 | 1310 | 1064 | nm | |
| Operating Wavelength Range | ±50 | ±50 | ±30 | nm | |
| Typical Insertloss@23℃ | 0.3 | 0.3 | 0.4 | dB | |
| Max.Insertion Loss @23℃ | 0.5 | 0.5 | 0.6 | dB | |
| Min.Return Loss | 50 | 50 | 50 | dB | |
| Typical Extinction Ratio @23℃ | 30 | 30 | 30 | dB | |
| Min.Extinction Ratio @23℃ | 28 | 28 | 28 | dB | |
| Input &Output Fiber Type | SM→SM or SM→PM or PM→PM | / | |||
| Max.Optical Power(CW) | 300 | mW | |||
| Package Dimensions | φ3.0×30,φ3.2×30 | mm | |||
| Max.Tensile Load | 5 | N | |||
| Operating Temperature | -5~+70 | ℃ | |||
| Storage Temperature | -40~+85 | ℃ | |||
