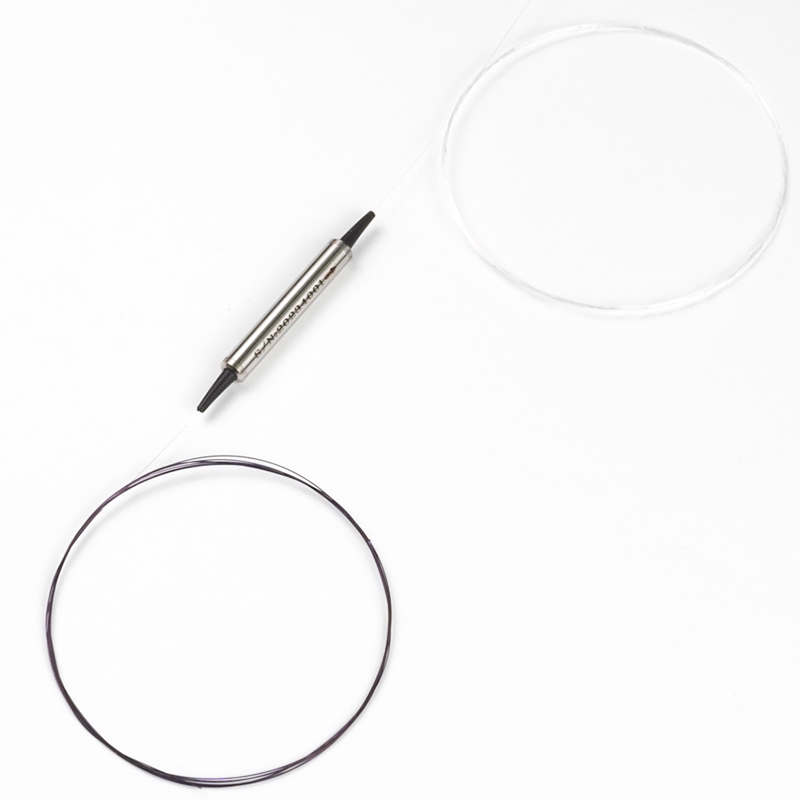

1030nm PM Circulator(50mW)
Features:
Low Insertion
High Return Loss
High lsolation
High Extinction Ratio
High Stability and Reliability
Applications:
Erbium-doped Optical Fiber Amplifier & Raman Amplifier
Fiber Sensors
Fiber Optic Instruments
Low Insertion
High Return Loss
High lsolation
High Extinction Ratio
High Stability and Reliability
Applications:
Erbium-doped Optical Fiber Amplifier & Raman Amplifier
Fiber Sensors
Fiber Optic Instruments
| Quantity: | |
|---|---|
| PDF Export | |
Product Description
| Parameter | Spec | Unit | |
| Port Type | 3 Port | / | |
| Center Wavelength | 1030 | nm | |
| Operating Wavelength Range | ±5 | nm | |
| Typ.Peak Isolation @23℃ | 23 | dB | |
| Min.Isolation @23℃ | 20 | dB | |
| Typ.Insertion Loss @23℃ | 3.2 | dB | |
| Max.Insertion Loss@23℃ | 3.5 | dB | |
| Min.Extinction Ratio @23℃ | 20 | dB | |
| Minimum Crosstalk | 50 | dB | |
| Min.Return Loss | 50 | dB | |
| Max.Optical Power | 50 | mW | |
| Max.Tensile Load | 5 | N | |
| Working axis | Fast Axis Block,Slow Axis Work | / | |
| Fiber Type | PM Panda Fibe | / | |
| Operating temperature | -5~+70 | ℃ | |
| Storage temperature | -40~+85 | ℃ | |
