980/1060 Dual-band Fused Taper Wavelength Division Multiplexer

Kerns Technology is a premier manufacturer of dual-band fused taper optical components in China. We provide tailored selections matching your ideal features, specifications, and system needs. We can custom the 980/1060 dual-band SWDM you ordered.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Product Description

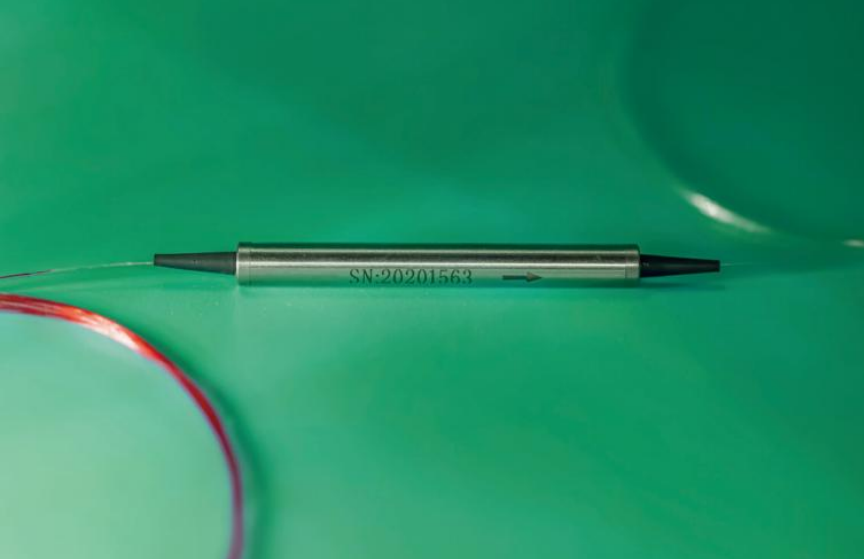

The Kerns Technology 980/1060 Dual-band Fused Taper Wavelength Division Multiplexer (SWDM) is a high-performance passive optical component engineered to combine or separate 980nm pump light and 1060nm signal light in fiber optic systems. It adopts premium fiber types (Corning HI1060FLEX or OFS 980-16) for both public/pump and signal ports, ensuring optimized compatibility with both wavelength bands.

Leveraging advanced fused taper technology, this SWDM delivers ultra-low insertion loss (≤0.30dB), high isolation (≥16dB), and minimal polarization-dependent loss (≤0.08dB) across its operating bandwidth (795-985nm/1055-1065nm). Its flexible configurations—including multiple fiber types, pigtail options, and package sizes—enable seamless integration into fiber EDFAs, lasers, and precision test setups.

Product Features

1. Dual-band Wavelength Optimization

Supports 980nm (pump) and 1060nm (signal) bands with a wide operating bandwidth (795-985nm/1055-1065nm), perfectly aligned with the wavelength requirements of fiber EDFAs and lasers.

2. High-Performance Fiber Compatibility

Offers multiple fiber type options (Corning HI1060FLEX, OFS 980-16, etc.) to match your system’s existing fiber infrastructure, ensuring minimal coupling loss.

3. Ultra-Low Loss & High Isolation

Insertion loss ≤0.30dB (preserves pump/signal power efficiency)
Isolation ≥16dB (prevents cross-talk between 980nm and 1060nm signals)
Polarization-dependent loss ≤0.08dB (maintains signal stability under polarization fluctuations)

4. Flexible Customization

Package sizes: φ3.0×60mm, 90×20×9.5mm, or custom dimensions
Pigtail types: 250μm bare fiber, 900μm/2mm/3mm loose tube
Fiber lengths: 0.5m~3m (customizable to fit installation space)

Product Applications

This 980/1060 dual-band SWDM is widely used in:

Fiber EDFAs: Combines 980nm pump light with 1060nm signal light to enhance amplification gain and output stability.
Fiber Lasers: Separates 980nm pump wavelengths from 1060nm laser output, protecting laser sources from back-reflected light.
Optical Test Equipment: Serves as a precise wavelength combiner/separator in EDFA and laser characterization systems.

Technical Specification Table

Parameter	Value
Fiber Type	Corning HI1060FLEX, OFS 980-16 (customizable)
Operating Wavelength	980/1060nm
Bandwidth	795-985nm (980 band) / 1055-1065nm (1060 band)
Insertion Loss	≤0.30dB
Isolation	≥16dB
Polarization-Dependent Loss	≤0.08dB
Directionality	≥55dB
Operating Temperature	-40~+85°C
Storage Temperature	-40~+85°C
Pigtail Types	250μm bare fiber, 900μm/2mm/3mm loose tube

FAQs

Q1: What fiber types can I choose for this SWDM?

A1: We support Corning HI1060FLEX, OFS 980-16, and other compatible fiber types—you can select the option that matches your system’s existing fiber infrastructure.

Q2: How does connector installation affect performance?

A2: When equipped with connectors, insertion loss increases by 0.3dB and return loss decreases by 5dB. We recommend factory-installed connectors for optimal alignment and minimal signal degradation.

Q3: Can I customize the package size for my compact equipment?

A3: Yes. We offer standard packages (e.g., φ3.0×60mm) and can design custom dimensions to fit space-constrained setups like portable test devices.

Q4: Is this SWDM suitable for high-power pump applications?

A4: It supports typical 980nm pump power levels (≤2W) used in most EDFAs; for higher-power requirements, we can provide customized high-power versions with reinforced packaging.
