Can You Use A Power Splitter As A Combiner?

You can use a power splitter as a power combiner? Many splitters work both ways, allowing you to mix signals effectively. However, it's important to be aware of technical limits. Poor isolation can lead to interference, and if the impedance does not match, signals may bounce back. Additionally, if the input signals are not in phase, you could experience a loss of signal power.

Key Takeaways

You can use many splitters as combiners, but you should always check their specifications to get the best results. Good isolation is very important. It stops signals from mixing together and keeps the performance clear. Make sure the impedance matches to stop signal loss. Use matching transformers if you need to keep the signal quality good.

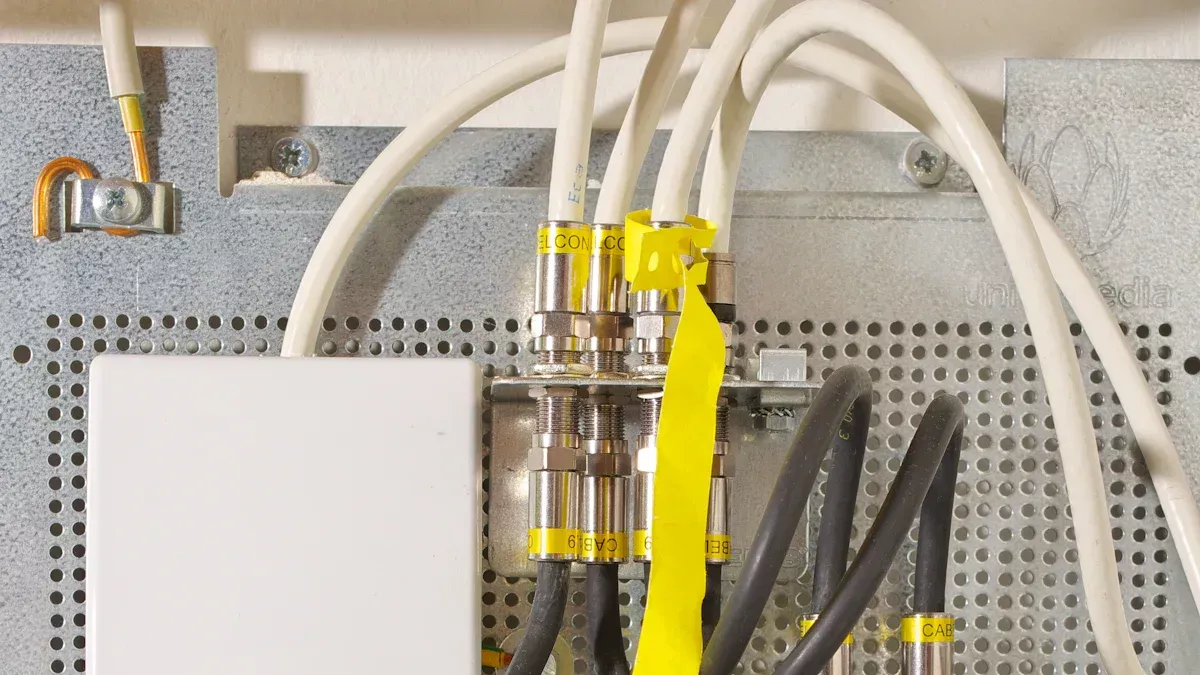

Splitter vs. Power Combiner?

Bidirectional Use

You may ask if a splitter and a power combiner are the same. Many times, you can use one device for both jobs. Splitters and combiners often work in both directions. If you send a signal into one port, it splits into more outputs. If you switch things around, you can put signals into those outputs. Then, the device combines them into one signal.

Tip: Splitters and combiners can work both ways. This lets you use more small amplifiers instead of one big amplifier. Your setup becomes easier to change and more useful.

Here is a table that shows how splitters and power combiners are different:

A power divider sends one signal to many devices. A power combiner joins signals into one output. Both devices may look the same, but they do different things.

Isolation and Interference

When you use a splitter as a power combiner, you should think about isolation and interference. Isolation means how well the device keeps signals apart. Good isolation stops signals from mixing. Bad isolation can cause problems like noise or signal loss.

• Most splitters have isolation values near 20 dB or higher. This keeps signals apart for most uses.

• If you need very exact results, look for isolation values of 47 dB or more.

• Companies like kernstech rate their splitters with isolation between 25 and 30 dB in the middle frequency range.

Note: Always check the isolation rating before using a splitter as a power combiner. If you remove the termination and the isolation drops to 6 dB, the splitter works right. If the isolation stays high, you may have an open circuit.

Good isolation keeps your signals clean. If isolation is too low, signals can mix together. This can make your system not work well. Always check the specs and pick the right device for your job.

Technical Considerations

Impedance Matching

If you use a splitter as a power combiner, you must match impedance. If you connect a 50Ω splitter to a 75Ω amplifier, signals can bounce back. This can make you lose signal. You can use a matching transformer to fix this problem. It changes 50Ω to 75Ω or the other way. Some splitters, like SBTC-2-10-5075+ and SBTC-2-10-7550+, are made for mixed impedance. These splitters help you join different systems without losing signal quality. Kernstech has splitters for both 50Ω and 75Ω setups. This makes your work easier.

• Power splitters work with 50Ω and 75Ω impedance.

• Matching transformers help stop signal loss.

• Special splitters connect 50Ω to 75Ω devices.

Signal Loss

When you combine signals, you lose some power. This is called insertion loss. The amount of loss depends on the splitter or combiner you use.

Risks

Using a splitter as a power combiner has some risks. If you do not match impedance or use the right termination, you can get high return loss. You may also get poor isolation. In high-power setups, resistors and baluns can get too hot or break. Solder joints and inductors can also fail. To avoid these problems, use the right device for your power level. Check the design for good heat control. Dedicated combiners, like 3dB hybrid couplers, work better for high-power jobs.

Types of Splitters

Reactive Splitters

Reactive splitters are used in many strong RF systems. These splitters use capacitors and inductors to split signals. They can handle up to 700 watts of power. They work with wireless frequencies from 0.800 to 2.700 GHz. You can pick a 2-way or 3-way model. Reactive splitters are tough because they do not use resistors. This makes them good for hard jobs. They have low insertion loss and about 20 dB port isolation. This means you lose less signal when using them as a power combiner. Your signals also stay cleaner.

Wilkinson Power Divider

The Wilkinson Power Divider is great at keeping signals clean. It uses quarter-wave transformers and special resistors. These parts stop signals from leaking between ports. This design keeps your signals from mixing. When you use a Wilkinson divider as a power combiner, it joins signals into one output. The signal quality stays high. You often see this type in microwave and RF systems. These systems need very good signal quality.

Choosing the Right Device

You should pick the splitter that fits your needs. Think about how much power you need. Check the frequency range and how many signals you want to join. For high-power jobs, reactive splitters are a good choice. If you need the best isolation and signal quality, use a Wilkinson Power Divider. Always check the power ratings. Make sure all unused ports have the right terminations. This stops damage and keeps your system working well.

Tip: Brands like kernstech have many splitters and combiners. You can find models for high-power or high-isolation needs. Always look at the specifications before you choose.

You can use a power splitter as a power combiner. But you must check the type and its limits. Always follow good steps to make it work well:

1. Pick splitters that lose little signal and keep signals apart.

2. Make sure impedance matches for steady signals.

3. Test for signal loss and isolation before using it.

4. Choose splitters that work on many bands for upgrades later.

Check the specs from trusted brands like kernstech. Look for things like frequency range, port types, and power options.

Always pick the right splitter for your job. This helps your system work well.

FAQ

Can you use any splitter as a combiner?

You can use many splitters as combiners. Always check the specifications. Some splitters work better for combining signals. Kernstech offers models designed for both uses.

What happens if you do not match impedance?

You may lose signal strength. Signals can reflect back. This can cause noise or damage. Always match impedance for best results.

How do you choose the right splitter for combining?

You should look at power rating, frequency range, and isolation. Read the product details. Pick a splitter that fits your system and signal needs.
