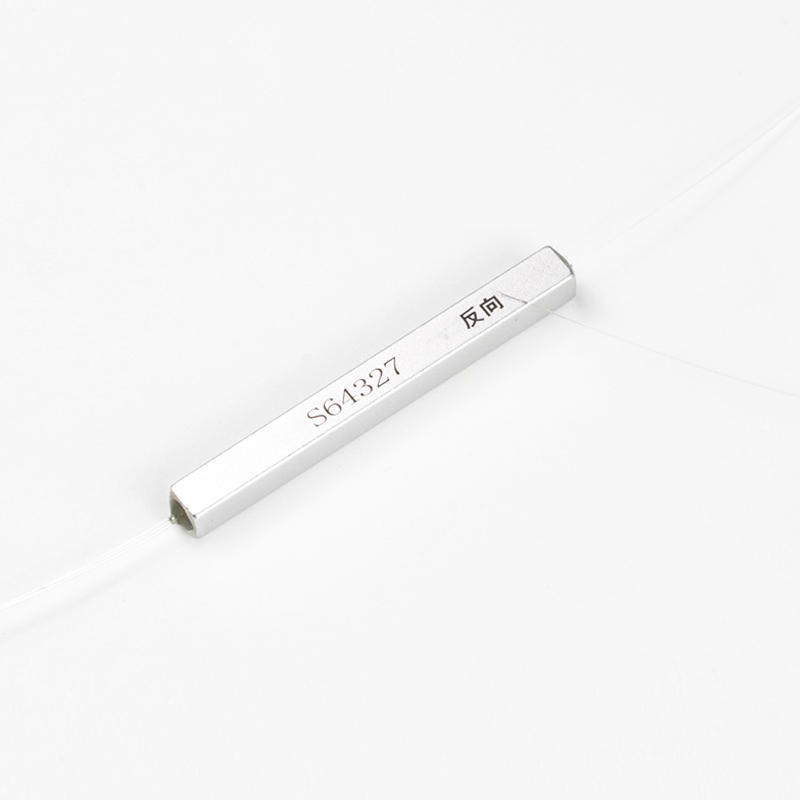

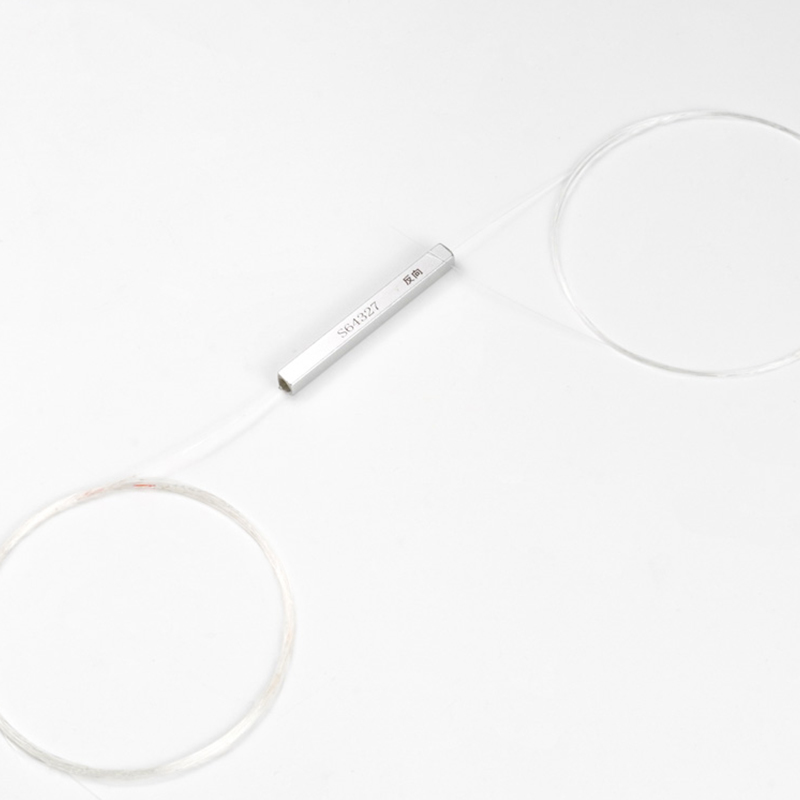

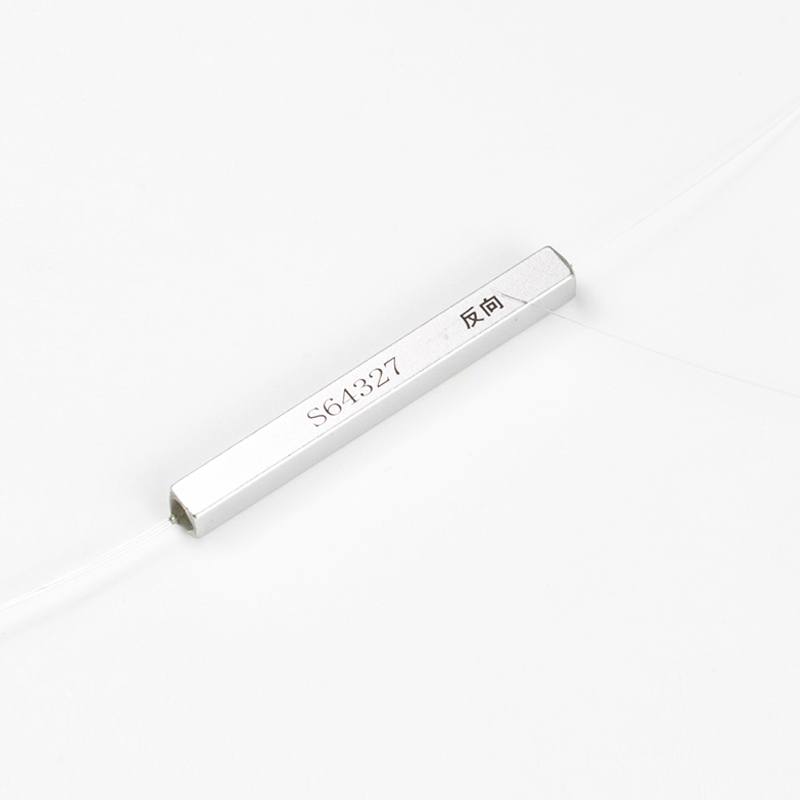

Mini Size PM Isolator
Features:
Low Insertion
High Return Loss
High Extinction Ratio
High Stability and Reliability
High lsolation
Applications:
High Return Loss
High Extinction Ratio
High Stability and Reliability
High lsolation
Applications:
Communicato Systems
Test Instrument Fiber Sensor
Research
Test Instrument Fiber Sensor
Research
| Quantity: | |
|---|---|
| PDF Export | |
Product Description
| Parameter | Spec | Unit | ||||||
| Grade | Single | / | ||||||
| Center Wavelength | 15,501,310 | 1064 | 1030 | nm | ||||
| Operating Wavelength Range | ±20 | ±5 | ±5 | nm | ||||
| Min.Isolation @23℃ | 28 | 28 | 20 | dB | ||||
| Max.Insertion Loss @23℃ | 0.55 | 1.8 | 3.5 | dB | ||||
| Min.Extinction Ratio @23℃ | BothAxis Working Fast Axis Block | 20 22 | 20 22 | 20 22 | dB dB | |||
| Max.Optical Power(CW) | 500 | 300 | 50 | mW | ||||
| Min.Return Loss(Input/Output) | 50/50 | dB | ||||||
| Max.Tensile Load | 5 | N | ||||||
| Fiber Type | PM Panda Fiber | / | ||||||
| Package Dimensions | φ3.0×30 or φ3.2×30 | mm | ||||||
| Operating Temperature | -5~+70 | ℃ | ||||||
| Storage Temperature | -40~+85 | ℃ | ||||||
