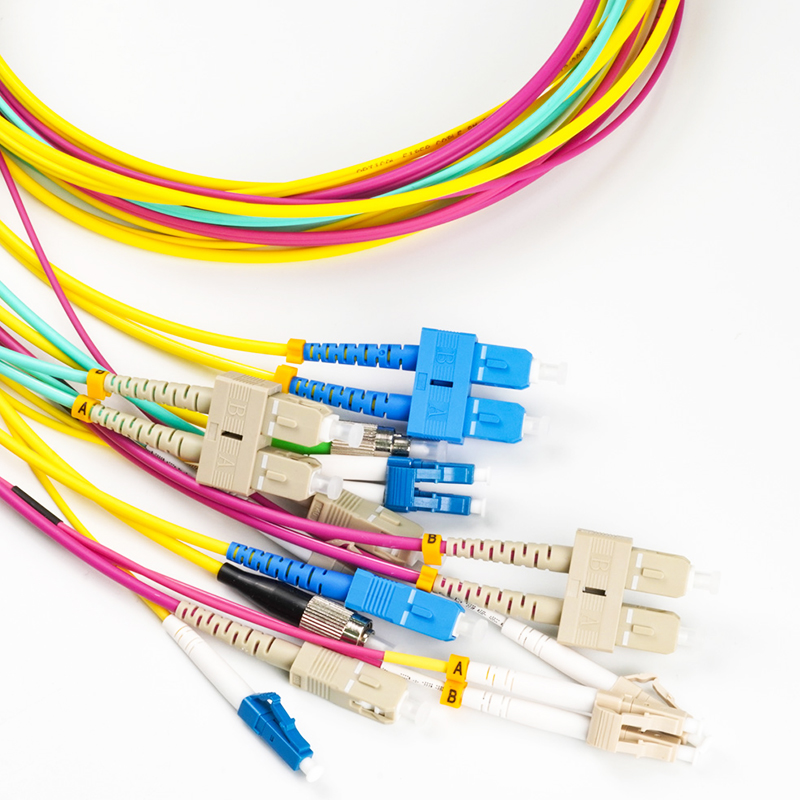

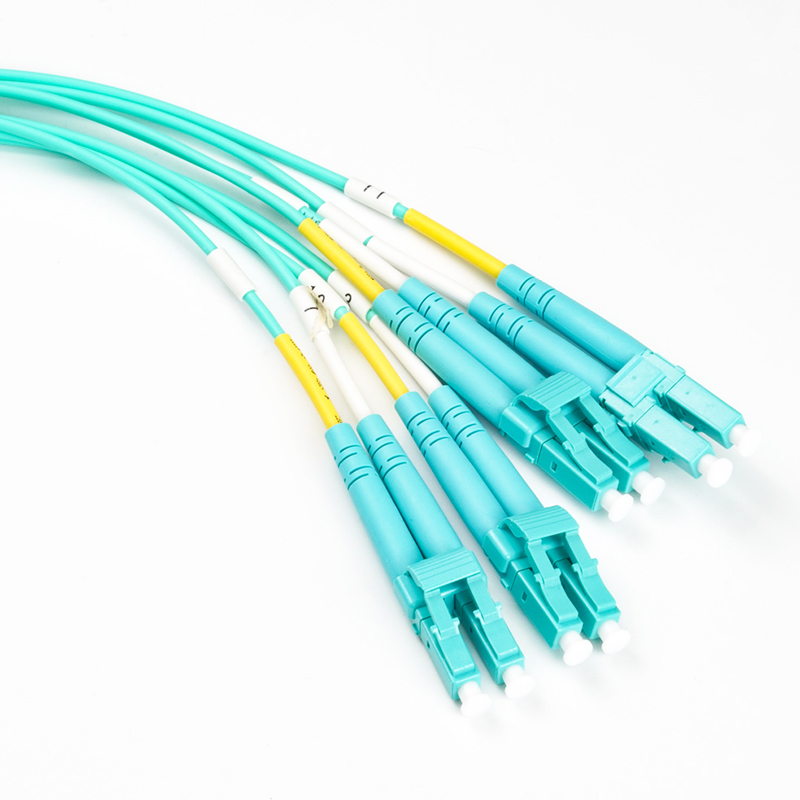

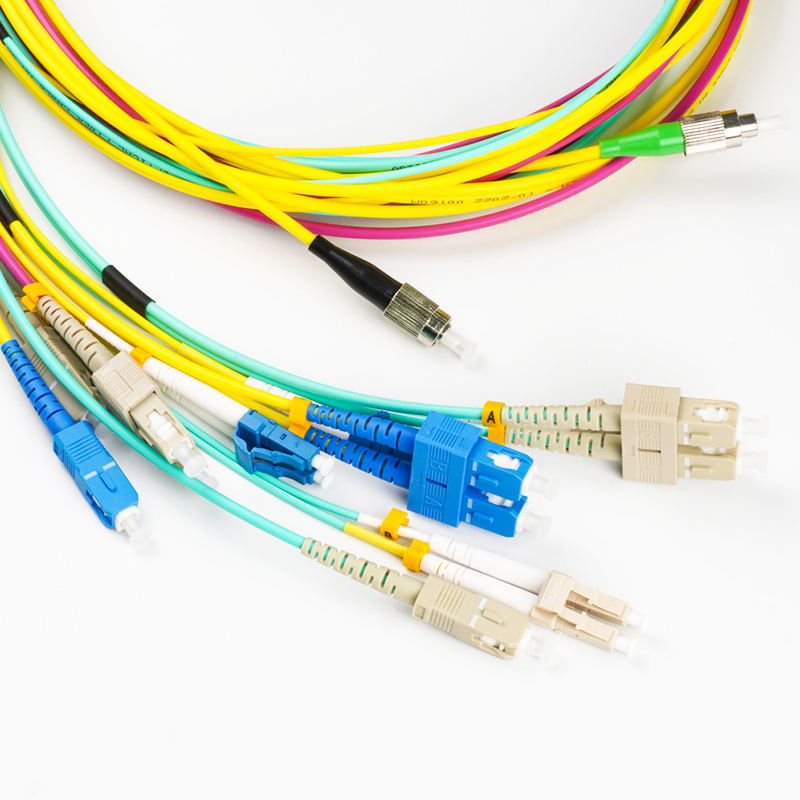

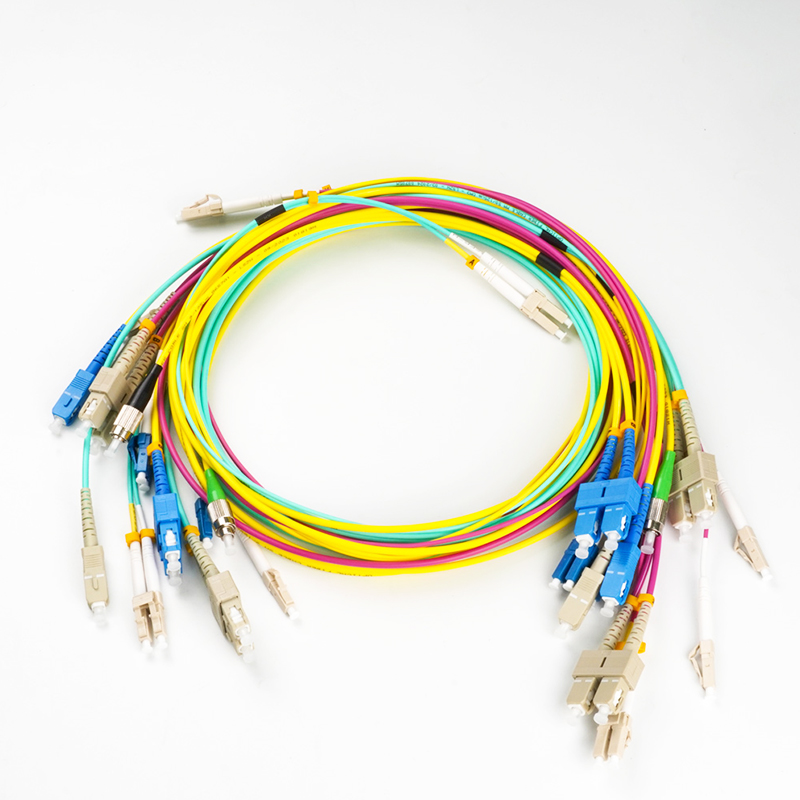

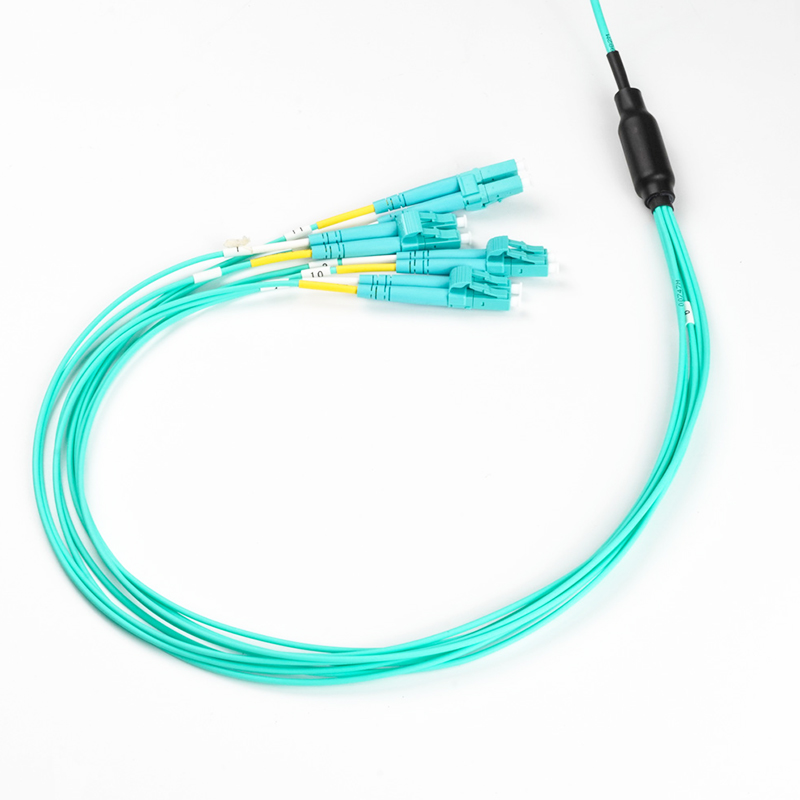

PM Fiber Optical Patch Cord Cable Jumper
Features:
Low Insertion
High Return Loss
High Extinction Ratio
High Reliability
High Stability
Applications:
High Return Loss
High Extinction Ratio
High Reliability
High Stability
Applications:
Optical Fiber Amplifier
Test Instrument
Fiber Sensors
Research
Optical Fiber Laser
Test Instrument
Fiber Sensors
Research
Optical Fiber Laser
| Quantity: | |
|---|---|
| PDF Export | |
Product Description
| Parameter | Spec | Unit | ||||||
| ConnectorType | FC,SC,LC | / | ||||||
| Center Wavelength | 20,001,950 | 15,501,310 | 1,060,980 | 850,780 | 633,532 | nm | ||
| Max.Insertion Loss | 0.8 | 0.3 | 0.5 | 0.8 | 0.8 | dB | ||
| Min.Extinction Ratio @23℃ | 22 | 23 | 23 | 18 | 18 | dB | ||
| Min.Return Loss | UPC Type | 50 | dB | |||||
| APC Type | 55 | dB | ||||||
| Fiber Type | PM Panda fiber | / | ||||||
| Key Direction | Slow Axis | / | ||||||
| Axis Alignment Tolerance | ±3 | deg | ||||||
| Operating temperature | -20~+70 | ℃ | ||||||
| Storage temperature | -40~+85 | ℃ | ||||||
