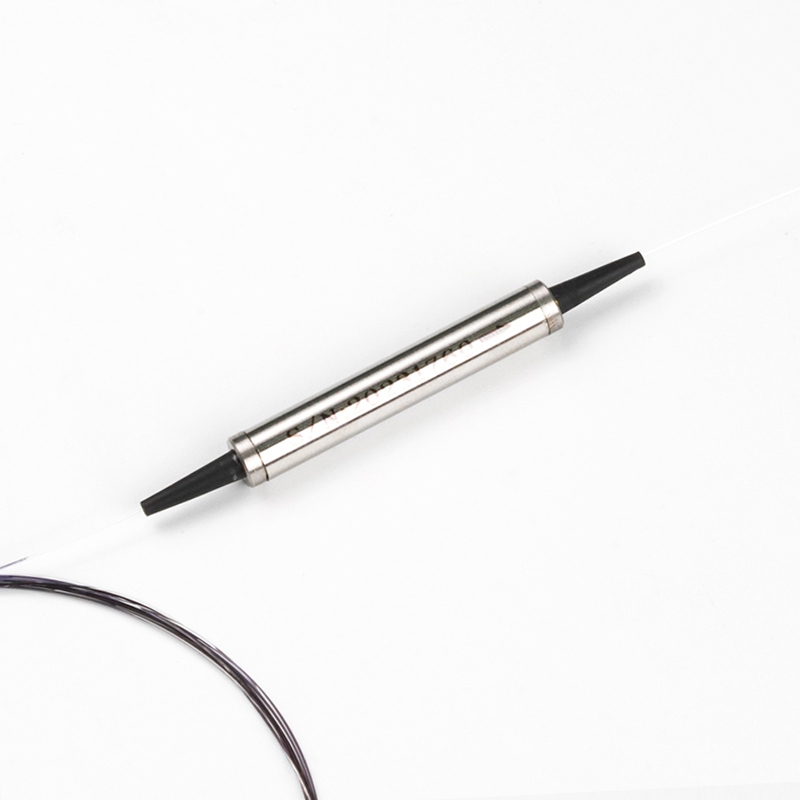

PM Isolator+WDM(980/1550,980/1064)
Features:
Low Insertion Loss
High Return Loss
High lsolation High Extinction Ratio
High Stability and Reliability
Applications:
Low Insertion Loss
High Return Loss
High lsolation High Extinction Ratio
High Stability and Reliability
Applications:
Optical Fiber
Optical Fiber Amplifier Test Instrument
Optical Fiber Amplifier Test Instrument
| Quantity: | |
|---|---|
| PDF Export | |
Product Description
| Parameter | Spec | Unit | ||||||
| Core Stage | Single | Dual | Single Dual | Single | Dual | / | ||
Signal Channel | Signal Wavelength Range | 2000±10 | 1550±15 | 1064±5 | nm | |||
| Max.Insertion Loss@23℃ | 1.4 | 1.6 | 0.9 1.0 | 2.3 | 3.5 | dB | ||
| Typ.peak signal reverse isolation | 20 | 30 | 40 | 40 | 52 | dB | ||
| Min.Signal Reverse Isolation @23℃ | 18 | 28 | 28 45 | 28 | 45 | dB | ||
| Min.Isolation(Com to Pass@Ref Wavelength) | 25 | 30 | 30 | dB | ||||
| Min.Extinction Ratio @23℃ | 18 | 20 | 20 | dB | ||||
SignalChannel | Wavelength Range | 1550±30 | 960~990 | 960~990 | nm | |||
| Max.Insertion Loss @23℃ | 0.6 | dB | ||||||
| Min.Isolation(Com to Ref @Signal Wavelength) | 12 | 15 | 15 | dB | ||||
| Min.Extinction Ratio @23℃ | 18 | 20 | 20 | dB | ||||
| Min.Return Loss | 50 | dB | ||||||
| Max.Insert Loss Thermal Stability | 0.005 | dB | ||||||
| Max.Optical Power(CW) | 300 | mW | ||||||
| Max.Tensile Load | 5 | N | ||||||
| Operating Temperature | -5~+70 | ℃ | ||||||
| Storage Temperature | -40~+85 | ℃ | ||||||
