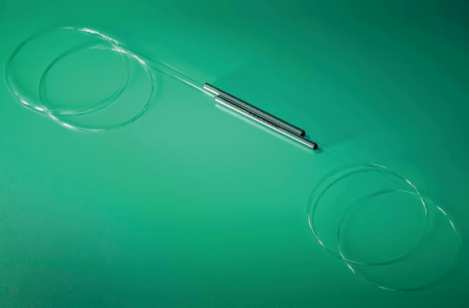

TGG Material In-line Isolator

Kerns Technology is a premier manufacturer of TGG-based optical isolators in China. We provide tailored selections matching your ideal features, specifications, and system needs. We can custom the TGG in-line isolator you ordered.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Product Description

The Kerns Technology TGG Material In-line Isolator is a high-performance passive optical component built on Terbium Gallium Garnet (TGG) material—an ideal Faraday rotator for polarization-insensitive light isolation. It is engineered to block reverse-propagating light (e.g., back-reflections) while transmitting forward signals, protecting laser sources and enhancing system stability.

Available in multiple center wavelengths (850/980/1030/1060/1080nm), this isolator delivers industry-leading performance: peak isolation up to 42dB, typical insertion loss as low as 0.7dB, and support for 0.3-50W average power (10kW peak power). Its compact 683228mm package, compatibility with HI1060/LMA fibers, and wide operating temperature (0~+65°C) make it suitable for high-power laser, amplifier, and communication systems.

Product Features

1. TGG Material Advantage

TGG’s high Verdet constant ensures efficient Faraday rotation, enabling high isolation (35-42dB) and polarization insensitivity—critical for suppressing back-reflections in diverse optical systems.

2. Ultra-Low Loss & High Isolation

Typical insertion loss: 0.7dB (≤1.0dB max) minimizes signal attenuation
Peak isolation: 35-42dB blocks reverse light to protect laser diodes and components

3. High Power Handling

Supports 0.3-50W average power (10kW peak power), meeting the demands of high-power fiber lasers and amplifiers (outperforming standard isolators with <20W capacity).

4. Flexible Compatibility

Multiple center wavelengths: 850/980/1030/1060/1080nm (matches common laser/signal bands)
Fiber options: HI1060 or LMA 10-30um fiber (adapts to low/high-power system requirements)

5. Robust & Compact Design

Compact 683228mm package for space-constrained setups
Wide operating temperature (0~+65°C) for industrial deployment

Product Applications

This TGG in-line isolator is widely used in:

High-Power Fiber Lasers: Protects laser sources from back-reflected light in material processing (cutting/welding) systems.
Fiber Amplifiers: Blocks reverse signals to stabilize gain and extend amplifier lifespan.
Optical Communication Links: Reduces interference from back-scattered light in long-haul transmission systems.
Test & Measurement Equipment: Ensures signal integrity in laser characterization and optical network testing.

Technical Specification Table

Parameter	Value
Center Wavelength	850, 980, 1030, 1060, 1080 nm
Bandwidth	10 nm
Peak Isolation	35-42 dB
Isolation (@23°C)	≥25 dB
Insertion Loss (@23°C)	≤1.0 dB (Typ. 0.7 dB)
Polarization-Dependent Loss	≤0.15 dB
Return Loss (Input/Output)	≥50/50 dB
Average Power	0.3-50 W
Peak Power	10 kW
Fiber Type	HI1060 fiber or LMA 10-30um fiber
Operating Temperature	0~+65°C
Storage Temperature	-20~+85°C
Package Size	683228 mm

FAQs

Q1: What is the key role of a TGG in-line isolator?

A1: It blocks reverse-propagating light (e.g., back-reflections from optical components) to prevent damage to laser sources, reduce signal interference, and improve system stability.

Q2: Can this isolator be customized for higher power?

A2: Yes. We offer standard 0.3-50W configurations and can design high-power versions (up to 100W average power) with reinforced packaging for specialized applications.

Q3: Is this isolator compatible with polarization-maintaining (PM) fiber?

A3: It is designed for non-PM systems (HI1060/LMA fibers), but we can provide PM-compatible TGG isolators for polarization-sensitive setups.

Q4: How does temperature affect isolation performance?

A4: Isolation is ≥25dB at 23°C; performance remains stable within the 0~+65°C operating range, with minimal drift (≤1dB) under normal conditions.
