PM SWDM Short Wavelength Division

Key Features of the PM SWDM

1. Exceptional Extinction Ratio

A key characteristic of the PM SWDM is its high extinction ratio, which significantly improves signal integrity. Available in configurations like 980/1064, 980/1550, and 1064/1550, the extinction ratio for the device ranges from 18 dB to 20 dB, depending on the wavelength combination. A high extinction ratio means that the device can effectively suppress unwanted signals, allowing for clearer, more reliable transmission of data in complex optical systems. This feature is especially beneficial in advanced systems where signal clarity is paramount.

2. High Isolation for Optimal Signal Integrity

The high isolation provided by the PM SWDM ensures minimal signal crosstalk between channels, which is essential for applications requiring clear signal separation. With a minimum isolation ranging from 13 dB to 18 dB, this device prevents interference and ensures that each channel operates independently, even when operating at higher power levels. High isolation is crucial in systems such as erbium-doped optical fiber amplifiers (EDFA) and fiber sensors, where even slight leakage can compromise performance and lead to signal distortion.

3. Low Insertion Loss

One of the standout advantages of the PM SWDM is its low insertion loss, which ensures that the signal strength is maintained throughout its journey through the optical system. With a maximum insertion loss of just 0.8 dB for both signal and pump wavelengths, the device guarantees that the transmitted signal experiences minimal attenuation, preserving its integrity. This is particularly beneficial for long-distance communication systems, where maintaining signal strength is critical to ensure high-quality performance.

4. Robust Stability and Reliability

The PM SWDM is designed for outstanding stability and reliability, making it an excellent choice for long-term use in a variety of environments. With an operating temperature range of -5°C to +75°C, the device can function effectively in both controlled environments and harsher, more variable conditions. This ensures reliable performance over time, making it suitable for use in demanding applications such as telecommunication systems and fiber optic sensing technologies. The PM SWDM is built to last, reducing the need for frequent maintenance and downtime.

5. High Return Loss and Directionality

Another key feature of the PM SWDM is its high return loss, which is 50 dB at maximum. This ensures that minimal light is reflected back into the system, preventing interference and improving overall signal quality. Additionally, the minimum directionality of 55 dB further enhances the device's ability to direct signals effectively without cross-talk, ensuring that each channel operates independently without losing efficiency.

Applications of the PM SWDM

The versatility of the PM SWDM makes it a valuable tool in a wide range of optical applications. Some of the primary use cases include:

1. Telecommunication Networks

The PM SWDM is widely used in telecommunication systems to manage multiple wavelengths and ensure high-performance data transmission. Its low insertion loss and high isolation make it an ideal solution for efficiently handling optical signals in fiber optic networks, minimizing the risk of signal degradation over long distances.

2. Erbium-Doped Optical Fiber Amplifiers (EDFA)

In erbium-doped optical fiber amplifiers (EDFA), the PM SWDM helps to manage the amplification process by effectively routing different wavelengths through the system. With its high extinction ratio and low insertion loss, the device ensures that the signal remains strong and clear, even after amplification.

3. Fiber Sensors

The PM SWDM plays a crucial role in fiber sensors, where precise wavelength division is required to monitor various parameters like pressure, temperature, and strain. The device’s high isolation and excellent directionality ensure that the optical signals remain distinct and accurate, leading to more reliable sensor data.

4. Test Instruments

In test instruments used for optical network testing and diagnostics, the PM SWDM provides the necessary performance to accurately measure signal quality. With its high return loss and minimal crosstalk, it enables precise testing and monitoring, ensuring that the systems under test perform at their peak.

Product Quality Control and Process

Each PM SWDM Short Wavelength Division Multiplexer undergoes stringent quality control during its production to ensure it meets the highest standards. Key performance metrics, including insertion loss, extinction ratio, and return loss, are tested to guarantee optimal functionality. The manufacturing process incorporates advanced technologies to ensure the multiplexer’s reliability, stability, and long-term performance.

Why Choose the PM SWDM?

The PM SWDM stands out due to its combination of features that make it ideal for high-performance applications. Its high extinction ratio, low insertion loss, and high isolation ensure that it delivers exceptional performance in demanding optical environments. Whether you’re working with fiber optic communication systems, erbium-doped amplifiers, or fiber sensors, this device provides the reliability and efficiency needed to ensure optimal system performance.

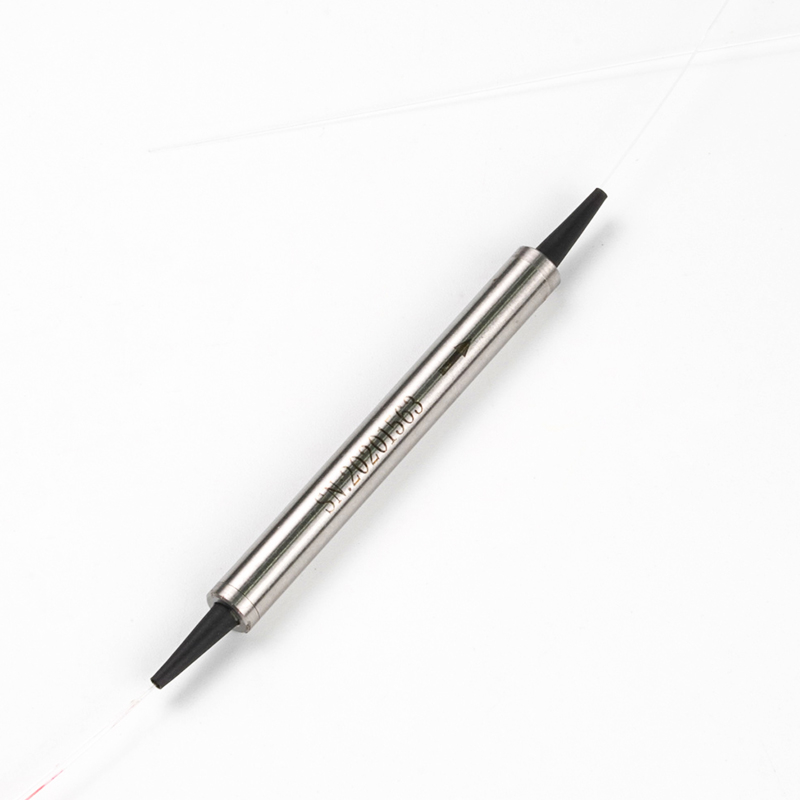

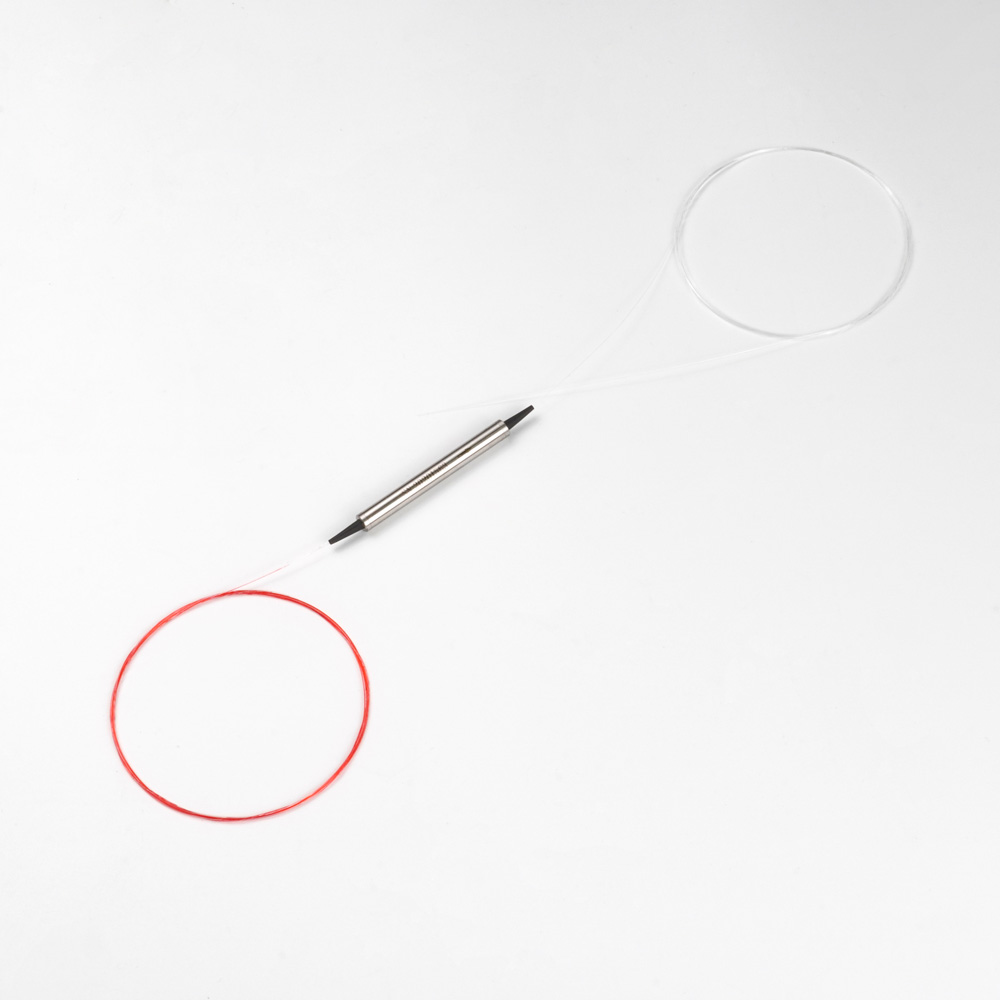

The device’s robust build and wide operating temperature range make it suitable for use in both indoor and outdoor applications, offering flexibility in deployment. Additionally, with its compact design and small package dimensions of φ3×70 mm (depending on the configuration), it can be easily integrated into existing systems without taking up excessive space.
