20W High Power 780-1064nm Faraday Rotator

Kerns Technology is a premier manufacturer of high-power optical components in China. We offer extensive options aligned with your desired performance, specifications, and scenarios. We can custom the high-power Faraday Rotator to meet your exact needs.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Product Description

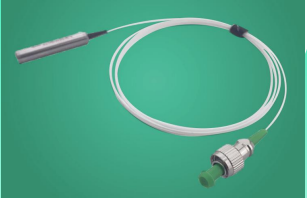

The 20W High Power 780-1064nm Faraday Rotator from Kerns Technology is a high-performance optical component engineered for demanding high-power laser systems. Operating across a broad wavelength range of 780-1064nm (covering key wavelengths like 780nm, 808nm, 850nm, 980nm, 1030nm, 1064nm), it delivers a precise 45° Faraday rotation (with ±2° tolerance at 23℃) to control light polarization reliably.

Built with advanced optical materials and a rugged 58×28×26mm package, this rotator supports continuous-wave power up to 20W (customizable to 0.5W-20W) and peak pulse power of 10kW (ns 级), making it suitable for high-intensity optical setups. It features low maximum insertion loss of 1.0dB (0.3dB higher with connectors) and exceptional stability, withstanding operating temperatures from -5℃ to +70℃. Whether for fiber lasers, industrial processing, or laboratory R&D, it ensures non-reciprocal polarization control and protects sensitive optical components from back-reflection damage.

Specification Table

Parameter	Unit	Value
Center Wavelength	nm	1064, 1030, 980, 850, 808, 780
Operating Wavelength Bandwidth	nm	±5
Maximum Insertion Loss	dB	1.0 (0.3dB higher with connectors)
CWL Faraday Rotation Angle	deg	45
Maximum Rotation Angle Tolerance @23℃	deg	±2
Minimum Extinction Ratio @23℃ (PM Fiber Type)	dB	20 (2dB lower with connectors)
Maximum Polarization-Dependent Loss @23℃ (Single-Mode Fiber Type)	dB	0.15
Maximum Polarization Mode Dispersion	ps	0.05
Maximum Continuous-Wave Power	W	0.5, 1, 5, 10, 20 (or Custom)
Maximum Peak Power (ns Pulses)	kW	10 (or Custom)
Package Dimensions	mm	58×28×26
Maximum Tensile Load	N	5
Axis Alignment	-	Dual-Axis Operation
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85
Notes (With Connectors)	-	Power handling limited to 1W; Return loss 5dB lower

Product Features

1. Excellent High-Power Handling Capacity

Supports continuous-wave power ranging from 0.5W to 20W and peak pulse power up to 10kW (ns 级), meeting the demands of high-power laser systems and industrial applications.

2. Broad Wavelength Compatibility

Covers 780-1064nm wavelength range with ±5nm operating bandwidth per center wavelength, compatible with multiple key wavelengths for versatile integration.

3. Precise Polarization Control

Delivers 45° Faraday rotation with ±2° tolerance at 23℃, ensuring accurate polarization manipulation. For PM fiber type, it offers a minimum extinction ratio of 20dB; for single-mode fiber type, maximum polarization-dependent loss is only 0.15dB.

4. Low Insertion Loss & High Stability

Boasts maximum insertion loss of 1.0dB (without connectors) to minimize signal attenuation. With polarization mode dispersion limited to 0.05ps, it maintains stable performance even in harsh operating environments.

5. Rugged & Compact Design

Features a robust 58×28×26mm package with 5N maximum tensile load resistance, balancing durability and space-saving for easy integration into tight system layouts.

6. Flexible Customization Options

Offers customization for fiber type (PM980, HI1060, PLMA-GDF-10/125-M, etc.), pigtail type (bare fiber/900μm loose tube), fiber length (0.8m/1m/custom), connectors (FC/UPC, FC/APC, SC/UPC, SC/APC, etc.), and power ratings to match specific application requirements.

Product Applications

This high-power Faraday Rotator is widely used in:

High-Power Fiber Lasers: Controls polarization to stabilize laser output and protect laser diodes from back-reflections in MOPA and fiber laser systems.
Optical Sensing Systems: Enhances signal integrity in high-power fiber-optic sensing setups for industrial monitoring and precision measurement.
Fiber Instruments: Optimizes performance of high-power optical test equipment and polarization control modules.
Coherent Detection: Maintains polarization alignment in high-intensity coherent communication and spectroscopy applications.
Industrial Laser Processing: Supports polarization control in laser cutting, welding, and marking systems, improving processing quality.
Laboratory R&D: Ideal for high-power optical experiments and component validation in research institutions.

Ordering Information Table

Code Segment	Description	Options
Model Prefix	Product Series	KHHPMPFR- (PM Fiber Type); KHHPIFR- (Single-Mode Fiber Type)
1111 (Wavelength)	Center wavelength specification	1064=1064nm, 1030=1030nm, 980=980nm, 780=780nm, SSSS=Custom
222 (Fiber Type)	Fiber type selection	003=PM980, 004=HI1060, 018=PLMA-GDF-10/125-M, SSS=Custom
3 (Package Size)	Package dimension option	0=58×28×26mm, S=Custom
4 (Pigtail Type)	Pigtail configuration	0=Bare Fiber, 1=900μm Loose Tube
5 (Fiber Length)	Pigtail length setting	0.8=0.8m, 1.0=1m, S=Custom
66 (Connector Type)	Fiber connector type	0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Custom
77 (Average Power)	Continuous-wave power rating	00=500mW, 01=1W, 05=5W, 10=10W, 20=20W, SS=Custom
88 (Peak Power)	Pulse peak power rating	00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, SS=Custom

FAQs

Q1: What is the maximum power this rotator can handle?

A1: It supports continuous-wave power up to 20W (customizable from 0.5W to 20W) and peak pulse power of 10kW (ns 级). Note that when using connectors, the maximum handling power is limited to 1W.

Q2: Can the fiber type and connector be customized?

A2: Yes. We offer various fiber type options (such as PM980, HI1060, PLMA-GDF-10/125-M) and connector types (FC/UPC, FC/APC, SC/UPC, SC/APC, etc.). Pigtail type and fiber length can also be customized to your needs.

Q3: How does the insertion loss change when using connectors?

A3: Without connectors, the maximum insertion loss is 1.0dB. When connectors are installed, the insertion loss increases by 0.3dB, and other performance parameters like return loss and extinction ratio will have slight changes (return loss decreases by 5dB, extinction ratio decreases by 2dB).

Q4: What is the operating temperature range of this product?

A4: It operates stably between -5℃ and +70℃, and the recommended storage temperature range is -40℃ to +85℃. Avoid extreme temperature and humidity environments to ensure long-term reliability.

Q5: Does the rotator require specific axis alignment during installation?

A5: Yes. It adopts dual-axis operation design, and connectors need to be aligned with the slow axis during installation to ensure optimal polarization control performance.
