300mW 1064-2050nm Polarization Maintaining Faraday Mirror

Kerns Technology is a premier manufacturer of polarization maintaining (PM) optical components in China. We offer diverse options tailored to your ideal features, specifications, and needs. We can custom the PM Faraday Mirror you require.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Product Description

The Kerns Technology 300mW 1064-2050nm Polarization Maintaining Faraday Mirror (PMFM) is a high-reliability optical component designed to reflect and rotate light polarization via the Faraday effect. Operating across a broad 1064-2050nm wavelength range (with band-specific bandwidths: ±5nm for 1064nm, ±15nm for 1550/2050nm bands), it delivers a precise 45° polarization rotation (±3° tolerance) for reflected light, ensuring polarization stability in fiber-optic systems.

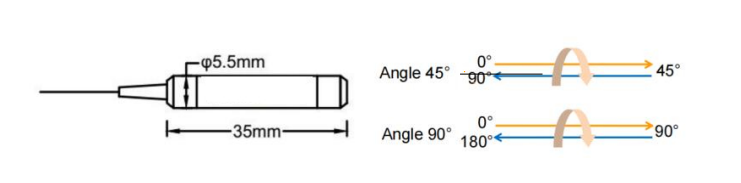

Built with PM Panda Fiber and a compact φ5.5×35mm package, this mirror supports up to 300mW continuous-wave power and features low insertion loss (as low as 0.6dB for 1550nm band) and 20dB minimum extinction ratio. Its dual-axis alignment design and rugged construction enable reliable performance across -5~+70°C operating temperatures, making it ideal for suppressing back-reflections, stabilizing laser cavities, and enhancing signal integrity in precision optical setups.

Specification Table

Parameter	Unit	Value (by Wavelength Band)
Center Wavelength	nm	2050/2000/1950; 1550/1480/1310; 1064
Operating Wavelength Bandwidth	nm	±15 (2050/2000/1950); ±15 (1550/1480/1310); ±5 (1064)
Maximum Insertion Loss	dB	0.9 (2050/2000/1950); 0.6 (1550/1480/1310); 3.0 (1064)
Minimum Extinction Ratio @23°C	dB	18 (2050/2000/1950); 20 (1550/1480/1310); 20 (1064)
CWL Faraday Rotation Angle	deg	45
Maximum Rotation Angle Tolerance	deg	±3
Maximum Polarization Mode Dispersion	ps	0.05
Maximum Power Handling	mW	300
Maximum Tensile Load	N	5
Axis Alignment	-	Dual-Axis Operation
Fiber Type	-	PM Panda Fiber
Operating Temperature	°C	-5~+70
Storage Temperature	°C	-40~+85
Notes (With Connectors)	-	Insertion loss +0.3dB; Return loss -5dB; Extinction ratio -2dB

Product Features

1. Broad Wavelength Compatibility

Covers 1064-2050nm (with band-specific bandwidths: ±5nm for 1064nm, ±15nm for 1550/2050nm), eliminating the need for multiple single-wavelength components.

2. Precise Polarization Rotation

Delivers 45° polarization rotation (±3° tolerance) for reflected light, maintaining polarization integrity in PM fiber systems.

3. Low Insertion Loss

Typical insertion loss as low as 0.6dB (1550nm band), minimizing signal attenuation in high-gain optical systems (e.g., fiber amplifiers).

4. High Polarization Stability

20dB minimum extinction ratio and 0.05ps maximum polarization mode dispersion reduce polarization drift caused by environmental disturbances.

5. Compact & Rugged Design

φ5.5×35mm package with 5N tensile load resistance, suitable for space-constrained industrial and laboratory environments.

6. Flexible Customization

Supports tailored options for fiber type (PM1550/PM1310/PM980), pigtail length (0.8m/1m), and connectors (FC/UPC, FC/APC, SC/UPC, etc.).

Product Applications

This PM Faraday Mirror is widely used in:

Fiber Lasers & Amplifiers: Stabilizes laser cavity polarization and protects laser diodes from back-reflection damage.
Optical Sensing Systems: Enhances signal-to-noise ratio in fiber-optic gyroscopes and interferometric sensors.
Coherent Communication: Maintains polarization alignment in high-speed optical communication links.
Laboratory R&D: Supports precision experiments in optical physics and component validation.
Fiber Instruments: Optimizes performance in optical test equipment and polarization control modules.

Ordering Information Table

Code Segment	Description	Options
Model Prefix	Product Series	KHPMFM-
1111 (Wavelength)	Center wavelength specification	2000=2000nm, 1550=1550nm, 1064=1064nm, SSSS=Custom
2 (Rotation Angle)	Polarization rotation angle	1=45°, 2=90°
333 (Fiber Type)	PM fiber type selection	001=PM1550, 002=PM1310, 003=PM980, 045=PM1950, SSS=Custom
4 (Package Size)	Package dimension option	0=φ5.5×35mm, S=Custom
5 (Pigtail Type)	Pigtail configuration	0=Bare Fiber, 1=900μm Loose Tube, S=Custom
6 (Fiber Length)	Pigtail length setting	0.8=0.8m, 1.0=1m, S=Custom
7 (Connector Type)	Fiber connector type	0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Custom

FAQs

Q1: What power level can this mirror handle?

A1: It supports up to 300mW continuous-wave power. Note that with connectors, insertion loss increases by 0.3dB, and other parameters (return loss, extinction ratio) have slight adjustments.

Q2: Can the fiber type and connector be customized?

A2: Yes. We offer fiber type options (PM1550, PM1310, PM980, etc.) and connectors (FC/UPC, FC/APC, SC/UPC, etc.), as well as pigtail type and length customization.

Q3: What is the operating temperature range?

A3: It operates reliably between -5°C and +70°C, with a storage temperature range of -40°C to +85°C, suitable for harsh industrial and laboratory environments.

Q4: How does this mirror suppress back-reflections?

A4: Its 45° polarization rotation for reflected light creates a "non-reciprocal" optical path, blocking reverse-propagating light and protecting sensitive laser sources.
