Low Power 300mW 1064-2050nm Polarization Maintaining Faraday Rotator

Kerns Technology is a premier manufacturer of polarization maintaining (PM) optical components in China. We provide tailored selections matching your ideal features, specifications, and system needs. We can custom the PM Faraday Rotator to fit your exact requirements.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Product Description

The Kerns Technology Low Power 300mW 1064-2050nm Polarization Maintaining Faraday Rotator is a precision optical component designed to control light polarization via the non-reciprocal Faraday effect—critical for shielding sensitive laser sources and stabilizing optical systems. Operating across an ultra-broad 1064-2050nm range (covering key wavelengths including 1064nm, 1310nm, 1550nm, and 2050nm), it delivers a 45° single-pass polarization rotation (±2° tolerance at 23°C) while maintaining strict polarization alignment in PM fiber setups.

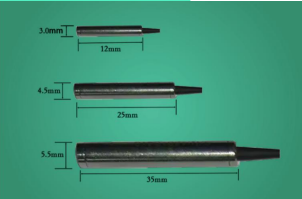

Built with high-quality PM Panda Fiber and a compact φ5.5×35mm package, this rotator supports 300mW continuous-wave power and features industry-leading performance metrics: maximum insertion loss as low as 0.6dB (1550nm band), minimum extinction ratio of 20dB, and polarization mode dispersion limited to 0.05ps. Its dual-axis alignment design ensures consistent performance across a -5~+70°C operating temperature range, making it an ideal choice for low-power fiber amplifiers, optical sensors, and laboratory R&D setups where polarization stability and signal integrity are non-negotiable

Specification Table

Parameter	Unit	Value (by Wavelength Band)
Center Wavelength	nm	2050/2000/1950; 1550/1480/1310; 1064
Operating Wavelength Bandwidth	nm	±15 (2050/2000/1950); ±20 (1550/1480/1310); ±5 (1064)
Maximum Insertion Loss	dB	1.3 (2050/2000/1950); 0.5 (1550/1480/1310); 1.6 (1064)
Minimum Extinction Ratio @23°C	dB	18 (2050/2000/1950); 20 (1550/1480/1310); 20 (1064)
CWL Faraday Rotation Angle	deg	45
Maximum Rotation Angle Tolerance @23°C	deg	±2
Maximum Polarization Mode Dispersion	ps	0.05
Maximum Power Handling	mW	300
Maximum Tensile Load	N	5
Axis Alignment	-	Dual-Axis Operation
Fiber Type	-	PM Panda Fiber
Operating Temperature	°C	-5~+70
Storage Temperature	°C	-40~+85

Product Features

1. Ultra-Broad Wavelength Coverage

Spans a wide 1064-2050nm spectrum with band-specific bandwidths (±5nm for 1064nm, ±15nm for 1310/1550/2050nm), supporting multi-wavelength system integration without the need for multiple single-wavelength components.

2. Optimized Low-Power Performance

Supports 300mW continuous-wave power, balancing sensitivity for low-power setups with sufficient headroom for dynamic operating conditions.

3. Industry-Leading Low Insertion Loss

Maximum insertion loss of 0.6dB (1550nm band) minimizes signal attenuation, ensuring efficient energy transmission in high-gain optical systems and preserving output stability.

4. Precision Polarization Control

Delivers 45° polarization rotation with ±2° tolerance and 20dB minimum extinction ratio, reducing polarization drift caused by thermal or mechanical disturbances—critical for precision applications like fiber interferometers.

5. Compact & Integration-Friendly Design

φ5.5×35mm miniaturized package with PM Panda Fiber compatibility, engineered for space-constrained optical instruments, sensor modules, and rack-mounted systems.

6. Flexible Customization Options

Offers tailored configurations to meet specific system requirements:

Center wavelength (1064/1310/1550/2050nm or custom-specified)
Fiber length (0.8m/1m standard or custom lengths)
Connector types (FC/UPC, FC/APC, SC/UPC, SC/APC, or no connector)

Product Applications

This PM Faraday Rotator is widely used in:

Low-Power Fiber Amplifiers: Stabilizes polarization in 100mW-300mW pump amplifiers, enhancing energy conversion efficiency and output consistency.
Optical Sensing Systems: Improves signal-to-noise ratio in fiber-optic gyroscopes (FOGs), strain sensors, and environmental monitoring devices.
Coherent Communication Networks: Maintains polarization alignment in 1550nm/2050nm long-haul optical links, supporting high-speed data transmission.
Laboratory R&D: Facilitates precision experiments in optical physics, polarization-dependent loss testing, and component validation.
Fiber Optic Instruments: Optimizes performance in optical spectrum analyzers, polarization meters, and optical test benches.

Ordering Information Table

Code Segment	Description	Options
111 (Wavelength)	Specify center wavelength	2000=2000nm, 1550=1550nm, 1310=1310nm, 1064=1064nm, SSSS=Custom
222 (Fiber Type)	Select polarization-maintaining fiber type	001=PM1550, 002=PM1310, 003=PM980, 045=PM1950, SSSS=Custom
3 (Package Size)	Choose package dimensions	0=φ5.5×35mm, S=Custom
4 (Pigtail Type)	Pick pigtail configuration	0=250μm Bare Fiber, 1=900μm Loose Tube, S=Custom
5 (Fiber Length)	Set pigtail length	0.8=0.8m, 1.0=1m, S=Custom
6 (Connector Type)	Select fiber connector	0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Custom

Customization Options & System Integration Support

We understand that every optical system has unique requirements—our PM Faraday Rotator offers flexible customization and professional integration support to ensure seamless compatible with your setup:

1. Tailored Configurations

Wavelength Customization: Adjust center wavelength (1064/1310/1550/2050nm) or narrow/broaden bandwidth to match your specific application (e.g., ±10nm for 1550nm communication systems).
Fiber & Connector Options: Choose from PM Panda Fiber types (PM980/PM1310/PM1550/PM1950), pigtail lengths (0.8m/1m/2m/custom), and connector types (FC/UPC, FC/APC, SC/UPC, SC/APC, or no connector).
Mechanical Modifications: Customize package dimensions (beyond φ5.5×35mm) for space-limited environments (e.g., rack-mounted instruments or portable devices).

2. Integration Support Services

Technical Consultation: Our optical engineers provide free pre-sales consultation to help you select the right configuration based on your system’s power, wavelength, and integration constraints.
Compatibility Testing: Offer custom compatibility testing with your existing components (e.g., fiber amplifiers, sensors) to ensure optimal performance before mass deployment.
Documentation & Drawings: Provide detailed mechanical drawings, fiber alignment guides, and performance test reports to simplify installation and debugging.

FAQs

Q1: What makes this rotator suitable for low-power systems?

A1: Its ultra-low insertion loss (0.6dB max) minimizes signal degradation, while the 300mW power capacity provides flexibility for dynamic low-power operating scenarios—ensuring both sensitivity and reliability.

Q2: Can it be integrated into 2050nm long-haul communication systems?

A2: Yes. It fully supports the 2050nm wavelength with a ±15nm bandwidth, making it compatible with emerging long-haul optical communication architectures and multi-band setups.

Q3: How does the use of connectors impact performance?

A3: When using connectors, insertion loss increases by 0.3dB, return loss decreases by 5dB, and extinction ratio decreases by 2dB. For optimal results, align the connector key with the slow axis of the PM fiber during installation.

Q4: Is the fiber length customizable for my specific integration needs?

A4: Absolutely. We offer standard fiber lengths of 0.8m and 1m, and can provide custom lengths (e.g., 2m, 5m) to match your system layout and installation requirements.

Q5: What operating temperature range does this rotator support?

A5: It operates reliably between -5°C and +70°C, with a storage temperature range of -40°C to +85°C, making it suitable for both laboratory and industrial environments.
