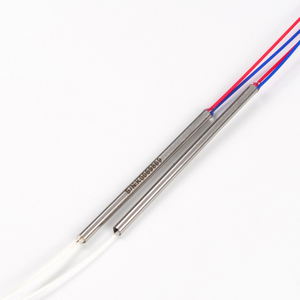

1550nm Mini Optical Fiber Reflector500mw RM Rotator Mirror
The 1550nm Mini Optical Fiber Reflector 500mW RM Rotator Mirror from Kernstech is designed to provide high performance in optical fiber systems, offering exceptional reliability and low insertion loss. This mini reflector and rotator mirror operates effectively at a wavelength of 1550 nm, a critical range for telecom and fiber optic applications. Its compact design and high stability make it suitable for various applications, including fiber optic instruments, fiber sensors, and optical fiber lasers. This device is engineered to minimize optical power loss while ensuring precise signal reflection and rotation, making it ideal for sensitive optical systems requiring robust performance.
| Quantity: | |
|---|---|
| PDF Export | |
Product Description
| Parameter | Spec | Unit | |||||||||||||
| Enter wavelength | 1550, 1480, 1310 | nm | |||||||||||||
| Bandwidth | ±30 | nm | |||||||||||||
| Max. Insertion LoSS | 0.5 | dB | |||||||||||||
| Min. Extinction Ratio @23oc | 20 | dB | |||||||||||||
| Max. PDL | 0.05 | PS | |||||||||||||
| Max. power(cw) | 500 | mw | |||||||||||||
| Max. Tensile Load | 5 | N | |||||||||||||
| Fiber Type | PM 1550 Fiber | / | |||||||||||||
| Operating Temperature | -5~ +70 | ℃ | |||||||||||||
| Storage Temperature | -40 ~+85 | ℃ | |||||||||||||
Product Features
● High Performance at 1550 nm: The mini optical fiber reflector operates specifically at the 1550 nm wavelength, ideal for telecom and fiber optic systems where this wavelength is standard.
● Low Insertion Loss: With a maximum insertion loss of only 0.5 dB, it ensures minimal signal degradation, maintaining the integrity of the optical system.
● High Return Loss: The mirror’s design ensures a high return loss, effectively preventing unwanted signal reflections and protecting sensitive components.
● Compact Design: Its miniaturized size allows for easy integration into space-constrained systems without compromising performance.
● High Reliability and Stability: Built for long-term use, the device delivers stable and consistent performance in both normal and harsh environmental conditions.
Product Uses
The 1550nm Mini Optical Fiber Reflector 500mW RM Rotator Mirror is used across a range of applications requiring precise light reflection and minimal signal loss. Its key uses include:
● Fiber Optic Instruments: Used in systems where precise light manipulation is required for testing, measurements, or diagnostics.
● Fiber Sensors: Ideal for systems where small, precise signals need to be reflected without distortion or loss.
● Optical Fiber Lasers: Provides reliable performance in high-power fiber lasers, ensuring efficient light transmission and reflection.
Usage Scenarios
● Telecommunications: Helps in maintaining the quality of signals in fiber optic communication systems.
● Research: Used in laboratories for fiber optics research and development.
● Medical Applications: Suitable for fiber optic-based medical equipment, providing stability and reliability.
Product Quality Control and Process
The 1550nm Mini Optical Fiber Reflector undergoes strict quality control processes during its manufacturing. Every unit is tested for insertion loss, return loss, and performance under varying temperature conditions to ensure it meets our high-quality standards. The production process uses advanced technologies to ensure that the reflector performs optimally and has a long lifespan.
Each reflector is meticulously assembled using high-quality materials to maintain consistent performance in demanding environments. The device undergoes rigorous testing before leaving the facility, ensuring that it meets the required standards of optical integrity and reliability.
FAQ
Q1: What is the wavelength range of this optical fiber reflector?
A1: The 1550nm Mini Optical Fiber Reflector operates at a wavelength of 1550 nm, which is standard for telecom and high-performance fiber optic applications.
Q2: What is the maximum insertion loss of this product?
A2: The maximum insertion loss is 0.5 dB, ensuring high efficiency with minimal signal attenuation.
Q3: Can this product be used in high-power applications?
A3: Yes, the reflector can handle up to 500 mW of continuous wave (CW) power, making it suitable for high-power fiber optic systems.
Q4: What is the operating temperature range of this device?
A4: The 1550nm Mini Optical Fiber Reflector operates efficiently in temperatures ranging from -5°C to +70°C, offering flexibility in different environments.
Q5: Is this reflector suitable for use in fiber optic sensors?
A5: Yes, this device is ideal for use in fiber optic sensors, as well as fiber optic instruments, offering precise signal reflection and minimal loss.
