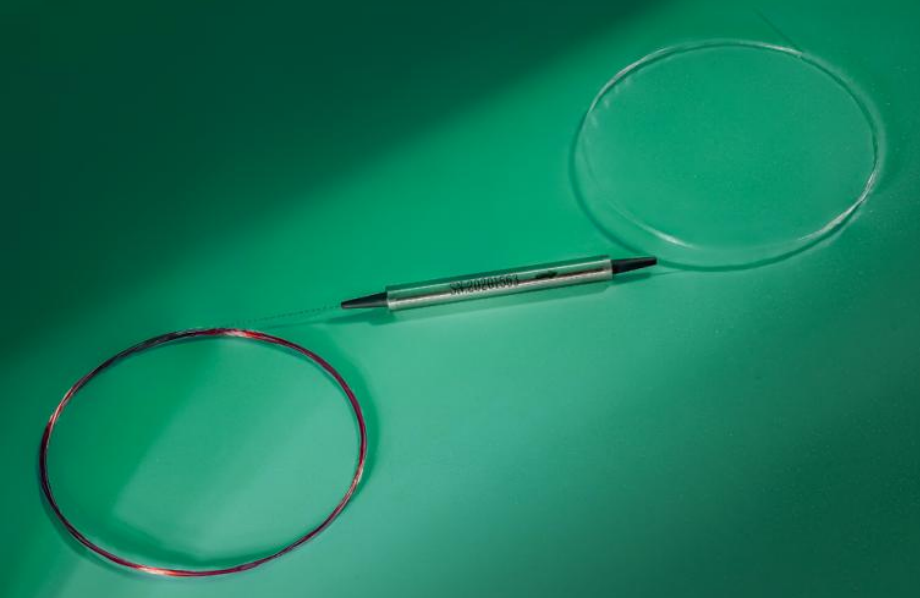

What Causes Thermal Lens in a High Power Isolator?

Picture a busy industrial production floor. A high-power laser system is executing a critical batch of precision EV battery welds. Halfway through the shift, the focal point inexplicably shifts. Penetration depth drops. Spark spatter increases. Scrap rates soar. This scenario is a classic and highly frustrating symptom of thermal lensing. As modern industrial and research applications scale laser power into the tens, hundreds, or thousands of watts, the optical components safeguarding these systems endure immense physical stress.

Chief among these protective devices is the high-power isolator. Acting as an optical diode, it is absolutely essential for blocking destructive back-reflections that can ruin a laser oscillator. Yet, these isolators are highly susceptible to thermal effects. When raw optical power meets microscopic material imperfections, heat is generated. We need to break down the exact physical mechanisms behind thermal lensing, explore how it jeopardizes delicate machinery, and understand why selecting advanced architectures permanently mitigates these costly risks.

Key Takeaways

• Thermal Lensing Defined: A phenomenon where optical materials absorb laser energy, creating a severe temperature gradient that alters the refractive index of the crystal and turns it into an unintended convex lens.

• Primary Causes: The main culprits are intrinsic material absorption within Faraday crystals, overwhelmingly high laser power density, and inadequate mechanical heat dissipation.

• System Impact: Left unchecked, this effect causes severe beam distortion, loss of optical isolation, and potential catastrophic burn damage to upstream components.

• Effective Solutions: Upgrading to specialized architectures, such as free space designs for superior cooling and wide-bandwidth models to handle spectral shifts, drastically reduces thermal vulnerabilities.

The Critical Role of a High Power Isolator in Laser Systems

To understand why thermal lensing is so devastating, we must first look at the function of an optical isolator. An isolator allows laser light to travel in only one forward direction. It serves as a mandatory defense mechanism. Without it, back-reflections from highly reflective workpieces like copper or aluminum would travel back down the optical path. This destabilizes the laser oscillator and causes irreversible damage.

Standard isolators handle low-power beams with ease. High-power isolators, however, are a completely different engineering breed. Built with specialized Faraday rotators, typically Terbium Gallium Garnet crystals, and ruggedized polarizers, they are designed to withstand intense continuous wave or pulsed wattages. Choosing an inadequately specified isolator for a multi-kilowatt application guarantees thermal failure. The exact component meant to protect your system quickly becomes the weakest link, leading to extensive production downtime.

The Physics of Thermal Lensing in Optics

At its core, thermal lensing is a thermodynamics problem intersecting with optical physics. When a highly concentrated laser beam passes through an optical medium, a microscopic fraction of the optical power is inevitably absorbed. This absorbed energy converts directly into heat. Because laser beams typically possess a Gaussian profile, meaning the light is intensely concentrated in the center and weaker at the edges, the center of the optical crystal heats up significantly faster than its perimeter.

This uneven heating creates a steep temperature gradient. Consequently, the refractive index of the material changes in a process known as the thermo-optic effect. The hotter central portion of the crystal becomes optically denser than the cooler edges. Light traveling through the center slows down relative to the light at the edges, causing the wavefront to curve. Your perfectly flat crystal suddenly acts exactly like a convex lens, forcibly shifting the laser focal point. Compounding this issue, the physical bulging of the heated crystal faces due to thermal expansion adds another layer of unwanted optical distortion.

Core Causes of Thermal Lens in a High Power Isolator

Recent industry analyses reveal a massive shift toward multi-kilowatt continuous wave lasers. This surge is driven heavily by the booming electric vehicle battery welding and metal additive manufacturing sectors. As engineers push these power boundaries, thermal management within optical components has transitioned from a secondary concern to the primary bottleneck in system stability. Understanding the root triggers is the first step toward effective prevention.

Optical Absorption in Faraday Crystals

Even the purest magneto-optic crystals inherently absorb a tiny percentage of light. At low power, a fractional absorption rate is negligible. Scale that up to a 500W or 1kW beam, and that tiny percentage generates a massive amount of localized heat. Standard Terbium Gallium Garnet crystals often struggle under these extreme loads. The baseline absorption rate of the core material becomes the primary trigger for thermal lensing.

Extreme Power Density and Gaussian Beam Profiles

Thermal lensing depends heavily on power density, measured in kilowatts per square centimeter, rather than just total wattage. Tightly focused beams pack immense energy into a microscopic cross-section. This extreme concentration exacerbates localized heating at the dead center of the isolator. It creates a sharper, more aggressive thermal lens than a wider, diffused beam would.

Ineffective Heat Dissipation and Packaging

Generating heat is inevitable. Trapping it is a design failure. Poorly engineered mechanical housings fail to pull thermal energy away from the crystal and polarizers. If an isolator lacks proper heatsinking or active cooling channels, thermal energy remains stagnant inside the optical path. The crystal bakes, the temperature gradient steepens, and the lensing effect spirals completely out of control.

How Thermal Lensing Damages Laser System Components

The consequences extend far beyond a slight drop in optical efficiency. The unintended lens dynamically shifts the focal point of the laser as the crystal heats up. Imagine running a deep-penetration welding cycle on an aerospace part, only to have the focal point drift by several millimeters mid-process. Precision is entirely lost, and the part is scrapped.

Beyond beam degradation, thermal stress causes birefringence. This mechanical stress alters the polarization state of the light. Because isolators rely on precise polarization to block backward-traveling light, thermal stress drops the isolation grade drastically. An isolator rated for 35dB of protection might plummet to 20dB, allowing dangerous back-reflections to bypass the safeguard entirely.

Ultimately, a dynamically shifting focal point can accidentally concentrate the high-power beam directly onto internal housings, adhesives, or fiber tips. This causes permanent burn damage. It destroys the isolator and severely threatens other expensive laser system components located upstream.

Overcoming Heat: The Advantage of a Free Space Architecture

When mitigating thermal lensing in extreme environments, the physical architecture of the optical components plays a foundational role. One of the most effective engineering solutions to combat aggressive thermal gradients is implementing a free space architecture.

Unlike in-line fiber isolators where the beam is strictly confined within a microscopic fiber core, a Free Space Type Isolator allows the laser to travel through open air as it passes through internal polarizers and Faraday rotators. This structural difference fundamentally alters the thermal dynamics of the system. Advanced free space models are engineered to handle continuous wave power up to 100W across a broad 780 to 1080nm spectrum. By allowing the laser beam to expand to a much larger diameter before entering the crystal, the power density drops drastically. Because power density decreases with the square of the beam radius, doubling the beam diameter reduces thermal concentration by a factor of four.

Moving beyond beam expansion, free space architectures offer distinct mechanical advantages. Their larger physical footprint provides ample room for robust active cooling mechanisms. Manufacturers integrate heavy-duty copper heatsinks or active water-cooling channels directly around the crystal housing. This continuously pulls absorbed thermal energy away from the optical medium, ensuring it remains at a stable operating temperature and preserving beam integrity.

Wavelength Variations and Wide Bandwidth Solutions

Thermal lensing is intrinsically tied to the specific wavelength of the laser and the absorption spectrum of the isolator materials. Magneto-optic crystals exhibit different absorption coefficients depending on the passing wavelength. A crystal highly transparent at a standard 1064nm might exhibit slightly higher absorption when exposed to a 980nm beam. This generates excess heat and induces a severe thermal lens.

To address applications involving tunable lasers or systems operating across multiple spectral bands, engineers utilize a Wide Wavelength Isolator. These specialized components maintain consistent low-absorption performance across a broad spectrum, typically spanning from 780nm to 1080nm. They are capable of handling demanding power levels, such as 20W in compact in-line setups, without degrading. Achieving this requires highly purified crystal growth techniques to minimize trace impurities alongside specialized broadband anti-reflective coatings.

For research facilities and advanced manufacturing setups, this spectral flexibility acts as a crucial safeguard. It ensures that as the laser frequency is adjusted, optical components do not suddenly experience spikes in thermal absorption. You prevent unexpected beam distortion regardless of the operating wavelength.

How to Choose the Right High Power Isolator to Minimize Thermal Effects

Selecting the correct isolator is a critical engineering decision. It dictates the lifespan and reliability of your entire setup. Procurement managers and laser engineers must evaluate several technical parameters to ensure thermal stability on the production floor.

Evaluate the Absorption Specifications

When sourcing an isolator, closely examine the absorption grade of the Faraday rotator. Standard materials may have absorption rates acceptable for 10W systems but will quickly fail at 100W. Look for isolators specifying low-absorption grade crystals, such as highly purified Terbium Scandium Aluminum Garnet. These advanced materials offer lower baseline absorption and significantly higher thermal conductivity compared to standard options.

Match the Isolator to Your Beam Profile

An isolator must be mechanically and optically matched to the specific beam profile of your laser. The clear aperture must be at least 1.5 to 2 times the diameter of the Gaussian beam. If the aperture is too small, the edges of the beam will be clipped by the internal housing. This edge-clipping generates immediate and intense localized heating that transfers directly into the optical path.

Prioritize Polarization-Insensitive and Thermally Compensated Designs

To counter thermal birefringence, top-tier manufacturers offer thermally compensated isolator designs. These typically utilize a dual-crystal architecture paired with a reciprocal optical rotator. The thermal stress induced in the first crystal is mathematically canceled out as the light passes through the second crystal. This ensures the isolation grade remains strictly maintained even under heavy thermal loads.

Conclusion

Thermal lensing represents a formidable challenge in high-power laser environments. It is fundamentally driven by material absorption and exacerbated by extreme power densities. When heat management fails, the resulting beam distortion compromises entire production runs and threatens expensive upstream equipment. However, choosing the appropriate optical architecture makes a profound difference. Leveraging free-space designs for superior thermal dissipation and utilizing wide-wavelength models for spectral flexibility allows engineers to effectively safeguard sensitive systems. Protecting your laser oscillator requires proactive engineering. Stop letting thermal drift dictate your production yields. Evaluate your current optical setup, consult with experts, and explore advanced solutions at Kerns Tech to specify the exact isolator configuration your high-power system demands.

Frequently Asked Questions

At what power level does thermal lensing become a problem in an isolator?

While the exact threshold depends heavily on the beam diameter, specific wavelength, and ambient cooling conditions, thermal lensing typically becomes a measurable operational issue in continuous wave lasers exceeding 20W to 50W. Below this threshold, passive cooling is usually sufficient. Once power scales beyond 50W, transitioning to a dedicated high-power model with advanced thermal management is necessary to maintain beam precision.

Can thermal lensing be completely eliminated?

From a strict physics perspective, thermal lensing cannot be completely eliminated. According to the laws of thermodynamics, all physical materials will absorb at least a microscopic fraction of optical energy and convert it into heat. However, for practical engineering purposes, the effects can be heavily mitigated. By utilizing ultra-low-absorption crystals, expanding the beam diameter, and applying active water cooling, engineers can reduce the thermal lens effect to a level where it no longer impacts performance.

What is the difference between an in-line fiber isolator and a free space type isolator regarding heat?

The primary difference lies in power density and the physical space available for heat dissipation. In-line fiber isolators confine the laser beam within a tiny fiber core, concentrating all optical power into a microscopic area and creating extreme heat density. A free space isolator allows the beam to expand to several millimeters in diameter before passing through the crystals, drastically lowering the power density. Additionally, free space models accommodate heavy-duty heatsinks or water cooling channels, making them far superior for high-heat environments.

Does thermal lensing permanently damage the isolator?

The thermal lens effect itself, which is the shifting of the refractive index due to a temperature gradient, is a temporary physical state. Once the laser is turned off and the crystal cools, optical properties usually revert to normal. However, the secondary consequences can be permanent. Extreme heat gradients can cause thermal shock, physically cracking the crystal. Furthermore, if the distorted beam focuses onto internal housings or adhesives, it will cause permanent burn damage, destroying the isolator.

How do you measure thermal lensing in a laser system?

Engineers typically measure thermal lensing by monitoring the focal shift of the laser beam during operation. This is done using a beam profiler placed along the optical axis. By comparing the beam's waist location and diameter at a cold start versus after several minutes of high-power continuous operation, the exact focal shift distance can be quantified. A significant shift indicates a severe thermal lens effect.

What materials are best for reducing thermal lensing in Faraday rotators?

For high-power applications, standard Terbium Gallium Garnet crystals are often replaced with advanced alternatives like Terbium Scandium Aluminum Garnet or Potassium Terbium Fluoride. These specialized materials feature exceptionally low absorption coefficients and much higher thermal conductivity. This allows them to dissipate absorbed heat much faster, keeping the internal temperature gradient flat and minimizing the thermo-optic effect.
